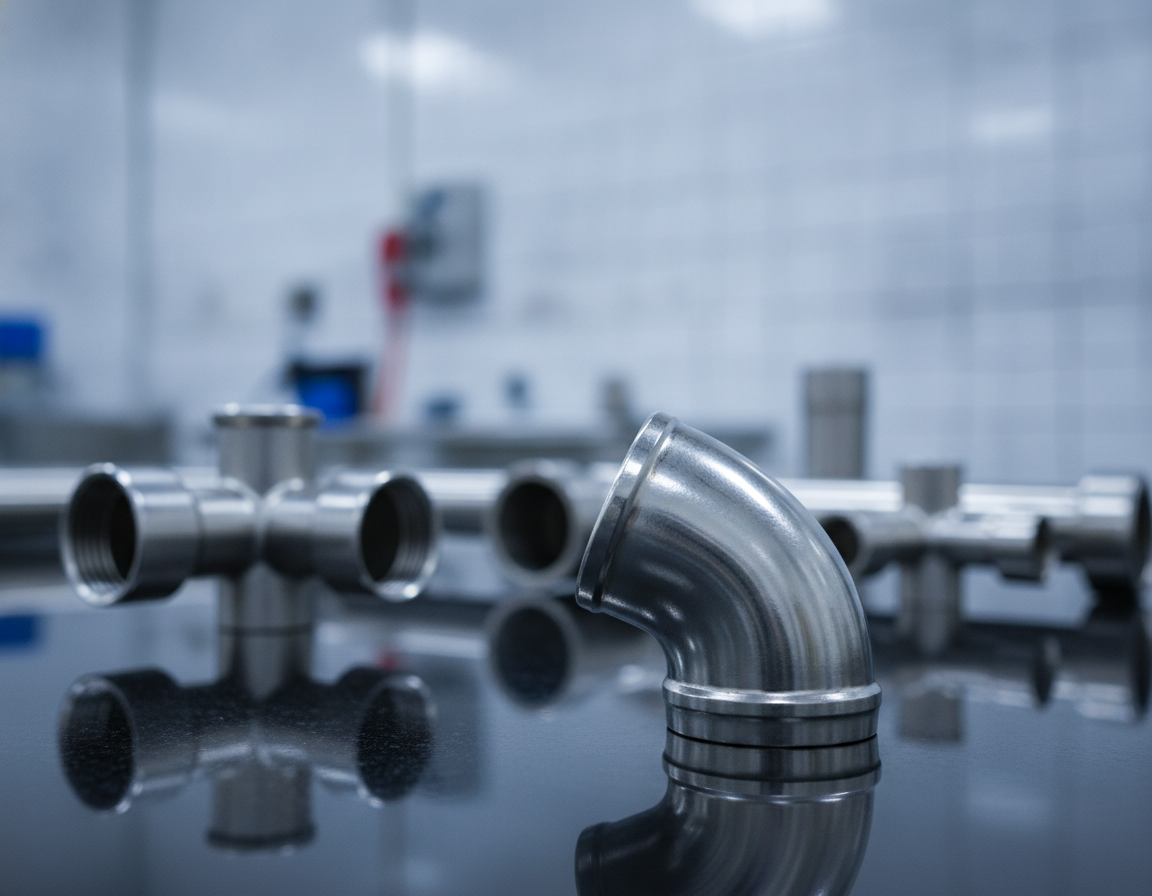

Across many industries, stainless steel sanitary pipe fittings are important for keeping process systems safe. Components such as ferrules, clamps, sanitary valves, and fittings are made to maintain clean fluid paths. They help minimize contamination risks and make cleaning easier.
CSI Sanitary Fittings
The choice of Hygienic Fittings and Ss Sanitary Fittings has a direct effect on product safety, system uptime, and adherence to regulations. Material grade, surface finish, and connection compatibility are key selection factors. They influence the ease with which a system can be validated and maintained.
Reliable suppliers and detailed catalogs are important for operations teams to select the right parts. Brands like CSI and distributors such as Installation Parts Supply offer essential information. Their catalog listings, lead times, and customer reviews can support purchasing decisions for Sanitary Valves And Fittings.
Key Takeaways
- Stainless Steel Sanitary Pipe Fittings enable contamination control in clean process systems.
- Cleanability and corrosion resistance depend on material grade and surface finish.
- Compatible Hygienic Fittings minimize downtime during upgrades, changeovers, and maintenance.
- Supplier catalogs and reviews from CSI and Installation Parts Supply aid reliable sourcing.
- Proper selection of Sanitary Valves And Fittings supports regulatory compliance and product quality.
Understanding Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems require components designed for safety and efficiency. A sanitary fitting must have smooth surfaces, tight seals, and easy cleaning access. These features help prevent contamination and support clean-in-place and sterilize-in-place procedures.
What Sanitary Fittings Are Designed To Do
Sanitary fittings, often called hygienic fittings, are designed to create crevice-free connections. That design limits bacterial growth and helps maintain product purity during transfer and processing. Their design supports faster cleaning while reducing cross-contamination risk.
Industries That Use Hygienic Fittings
Food processors use hygienic fittings to support safety standards and reduce spoilage risk. Beverage manufacturers use these fittings to protect flavor, clarity, and shelf life. Pharmaceutical facilities choose fittings that meet strict regulatory and validation requirements.
Biotech facilities require precise sanitary connections for cell culture and fermentation. These industries value traceability, repeatable cleaning, and material compatibility.
Why Stainless Steel Is Used In Sanitary Applications
Stainless steel is widely chosen because it delivers corrosion resistance, mechanical strength, and easy cleanability. Grades like 304 and 316L withstand chemicals and high temperatures. They also allow surface finishes such as electropolishing and low Ra values.
Stainless components help limit bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces improve assembly, inspection, and maintenance in hygienic systems.
Stainless Steel Sanitary Pipe Fittings Explained
Stainless steel sanitary pipe fittings are important in modern clean systems for food, beverage, and pharmaceutical industries. The right material, product type, and surface finish are critical to reducing contamination risk and making cleaning easier. This guide will review common grades, typical component families, and finish options for hygienic performance.
Common Materials And Grades Used
Type 304 stainless steel provides corrosion resistance and mechanical strength, making it suitable for many general processing lines. It is commonly used for tanks, structural supports, and areas where product-contact risk is lower.
Type 316L offers superior resistance to chloride pitting and crevice corrosion. Pharmaceutical companies frequently choose 316L for wetted parts due to its low carbon content, which prevents sensitization during welding.
Matching grades across components supports corrosion resistance and prevents galvanic issues when parts are joined. Specifying 304 or 316L at the design stage streamlines the procurement of SS Sanitary Fittings and associated parts.
Common Product Types And Their Roles
Ferrules serve as the basic connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings ensure smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings join flexible lines and permanent pipe runs. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing a system with compatible SS Sanitary Fittings limits downtime and leak risks.
Why Surface Finish Matters For Cleanability
Surface roughness influences how residues adhere. A 32RA internal finish is a common spec that balances cost and cleanability for most food and beverage applications.
Electropolishing further smooths the stainless surface and improves passivity. This treatment reduces microbial harborage and boosts corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When parts share matching 32RA or electropolished surfaces, cleaning validation is more reliable.
| Sanitary Component | Typical Material | Typical Finish | Primary Use |
|---|---|---|---|
| Ferrules butt weld / weld-in | 304 stainless or 316L stainless | 32RA internal/external finish | Sanitary welded pipe ends |
| Two-piece clamps Tri-Clamp | 316L preferred | Polished or electropolished finish | Fast sanitary assembly and disassembly |
| Weld fittings and couplings | 304 or 316L stainless | 32RA, electropolished optional | Permanent connections, elbows, and tees |
| Hygienic hose fittings | 316L commonly used | Electropolished where product contact occurs | Flexible process lines and transfers |
| Sanitary valves and process fittings | 316L on wetted surfaces | Smooth polished flow paths | Hygienic flow control |
Tri Clover Fittings, Tri-Clamp Fittings Catalog, And Triclover Fitting Options
Tri Clover Pipe Fittings align with strict dimensional standards, ensuring compatibility across manufacturers. DIN 32676 and DIN 11864-3A set ferrule face geometry and clamp interfaces. These standards help sanitary lines remain leak-resistant, cleanable, and easy to maintain. These standards streamline the selection of Triclover Fittings for food, beverage, and pharmaceutical applications.
When reviewing a Tri-Clamp Fittings Catalog, focus on size range, material grade, pressure ratings, and surface finish. Catalogs typically list two-piece clamps from 0.25″ to 4″, along with single-pin designs and corresponding gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Key items in catalogs feature clamps, ferrules, and gasket sets, sized in inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting entry should show OAL, ID/OD finish, and compatible gasket material. This supports the correct part is chosen at the time of order.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps feature a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, select high-pressure clamps based on rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
Material choice affects service life, cleanability, and corrosion resistance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This supports the selection of Tri Clover Pipe Fittings based on process conditions and application requirements.
Spec sheets should include clamp size charts, ferrule dimensions, and part numbers to streamline procurement. A well-organized catalog facilitates quick replacement of Triclover Fittings, minimizing downtime. Choose suppliers that publish detailed specifications for each Tri Clover Fitting so interchangeability across brands can be confirmed.
CSI Sanitary Fittings Compatibility And Sanitary Connections
Sanitary connections are important for linking pipes, valves, and equipment in clean systems. The correct joint type is important for maintaining cleanability, efficiency, and reliability. This section covers common connection styles, brand interchangeability, and supplier reliability feedback.
Common connection types include Tri-Clamp connections, butt-weld fittings, socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own advantages and disadvantages regarding assembly speed, cleanability, and leak risk.
Clamp connections are valued for their quick assembly and ease of disassembly for cleaning. Welded joints, on the other hand, offer the smoothest internal profile for cleaning-in-place CIP and sanitizing-in-place SIP processes. Threaded fittings are appropriate for low-risk applications where product contact is not a concern. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility is essential when mixing components. CSI Sanitary Fittings and Csi Fittings use common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien provides spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To ensure compatibility, match the nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can cause corrosion, leakage, or product-residue traps.
Customer reviews can provide practical insight into supplier reliability and fulfillment speed. Reviews for CSI show consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear spec sheets reduce downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Connection Type | Recommended Application | Cleanability | Cross-Brand Notes |
|---|---|---|---|
| Clamp Tri-Clamp | Lines requiring fast access for cleaning | Easy cleaning when gasket and ferrules match | High if size and sealing face match; CSI fittings usually fit standard systems |
| Butt-weld and socket-weld fittings | Permanent process runs requiring smooth internal bores | Very high after proper polishing | Standard dimensions support cross-brand ferrule and coupling compatibility |
| Threaded | Low-risk applications away from product contact | Moderate because threads may trap residue | Less common for sanitary product lines; check material and finish |
| Sanitary hose and ferrule connection | Hose transfer service and movable equipment | Good if ferrule and clamp are matched | Compatibility depends on ferrule shape, gasket, and clamp match |
Sanitary Pipe Fittings Stainless And SS Sanitary Fittings Selection Guide
Selecting the correct sanitary components requires a focused review of size, material, finish, and pressure. This guide supports you match size, material, and finish to your process needs. Use the metrics and checks below to minimize downtime and ensure hygienic performance.
Start with size, designation, and connection standard. Confirm DN and TC markings, then verify DN-to-TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is essential. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket choice influence cleanability and seal life. Specify finish targets such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-sections and clamp pressure to avoid leaks.
Assess pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings provide conductivity and antimicrobial benefits in select systems. Before pairing copper with stainless lines, validate compatibility with cleaning agents, product chemistry, and dissimilar-metal corrosion risk.
Final verification steps can save money and prevent ordering mistakes. Compare catalog part numbers against DN TC inch equivalents, confirm material grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Installation, Maintenance, And Best Practices For Sanitary Coupling And Sanitary Weld Fittings
Keeping sanitary connections clean and reliable is essential in hygienic systems. Follow defined assembly steps for tri-clamp assemblies and welded joints to reduce leaks and contamination risk. Keeping detailed records of materials, finishes, and maintenance is essential for traceability and audits.
Correct assembly steps
Start by cleaning ferrule faces thoroughly and checking gaskets for cuts, deformation, or other defects. Place the gasket between the ferrule faces, ensuring the sealing surfaces are aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with brass nuts and adhere to the recommended torque to prevent over-compression.
Guidance for Sanitary Weld Fittings
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas purging to reduce oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Routine Sanitary Maintenance
Run CIP and SIP cycles according to process requirements. Regularly inspect ferrule faces, clamps, and gaskets after thermal cycles and scheduled cleanings. Replace gaskets when they show hardening, extrusion, cuts, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Troubleshooting common issues
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can cause uneven compression and create leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, confirm the correct gasket material and durometer, and verify that groove dimensions match ferrule specifications.
Surface damage repair considerations
Surface damage such as scratches, pitting, or crevice corrosion can trap microorganisms. Minor scratches can be polished out and then electropolished to restore the Ra levels. Components should be replaced if pitting penetrates the surface or if polishing would remove too much material.
Documentation and maintenance records
Keep detailed records of material grades, surface finishes, gasket types, clamp models, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records strengthen regulatory compliance and expedite troubleshooting efforts.
| Service Task | Frequency | Main Step | Important Notes |
|---|---|---|---|
| Clamp torque check | After assembly, then monthly | Verify with a calibrated torque wrench | Use manufacturer torque table for Sanitary Coupling sizes |
| Gasket inspection/replacement | Every 3–12 months or on failure | Look for damage, compression set, or extrusion | Replace with matching material and durometer |
| Surface finish inspection | Quarterly or after welding | Measure Ra, inspect visually | Electropolish if Ra exceeds spec for hygienic areas |
| Weld profile inspection | After installation and annually | Inspect weld shape, smoothness, and defects | Repair, polish, and revalidate Sanitary Weld Fittings as required |
| CIP and SIP validation | According to each cleaning or sterilization cycle | Record process parameters during each cycle | Document results for validation and regulatory review |
Buying Sanitary Fittings From Catalogs, CSI, And Installation Parts Supply
A detailed catalog review is a key first step. Look for a Sanitary Fittings Catalog that includes material grade, finish, and pressure rating. It should also reference standards such as DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, focus on clamp type, gasket compatibility, and dimensional specs. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog makes gasket and clamp matching easier during assembly and maintenance.
Evaluate Csi Fittings by reading independent reviews, checking supplier lead times, and comparing published specifications. Many buyers report fast shipping for common parts and responsive service for quality or order questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Product | Size | Grade | Surface Finish | Typical Catalog Price |
|---|---|---|---|---|
| Single-pin two-piece clamp | 0.25″ to 0.75″ | 304 | Standard | Approx. $3.91 |
| Two-piece single-pin sanitary clamp | One-inch size | Type 304 stainless steel | Standard catalog finish | 4.91 USD |
| Two-piece single-pin sanitary clamp | Two-inch size | 304 stainless | Standard catalog finish | $5.99 |
| Single-pin two-piece clamp | 2.5 inch | 304 | Standard finish | Approx. $6.93 |
| Two-piece single-pin sanitary clamp | 3″ | 304 stainless | Standard | 7.54 USD |
| Two-piece single-pin sanitary clamp | 4 inch | 304 stainless | Standard catalog finish | 9.16 USD |
| Tri-Clamp ferrule | 2″ — 1.125″ OAL | Type 316L stainless steel | 32RA ID/OD | 4.24 USD |
| TC sanitary ferrule | 2 inch with 1.125 inch OAL | 304 | 32RA ID/OD | 4.06 USD |
| Ferrule TC | 3 inch | 316L stainless | 32RA internal and external finish | $6.15 |
| High-pressure double-bolt clamp | 1.5 inch | Type 316 stainless steel | Polished sanitary finish | $12.93 |
| High-pressure sanitary clamp | 2 inch | 316 | Polished | Approx. $14.62 |
| High-pressure sanitary clamp | Three-inch size | Type 316 stainless steel | Polished | 20.26 USD |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to confirm availability, surface finishes, material grades, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, focus on catalogs that show clear specs for 304 versus 316L, specify surface finish, and cite conforming standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Final Thoughts
Stainless Steel Sanitary Pipe Fittings are necessary for maintaining cleanliness in various industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, supports cleanability. This lowers contamination risks significantly. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When selecting fittings, consider the material, finish, and connection type. Connection choices may include Tri-Clamp, weld, hose, or threaded fittings depending on pressure, product contact, cleaning requirements, and regulations. High-pressure clamps should be used where necessary. Consistency in gaskets, clamps, and ferrules prevents leaks and simplifies maintenance. Proper installation and regular cleaning support the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This supports balanced cost and reliability in procurement decisions. When searching for where to buy sanitary fittings, prioritize reputable U.S. suppliers. They should list product specifications, finishes, and standards to ensure compatibility with CSI and other branded fittings.
Following these guidelines improves system design and upkeep. Clear specifications, consistent materials, and reliable sources help minimize downtime. This protects product quality in hygienic processing environments.
